Order Batching Problem

# Copyright (c) Hexaly. Permission is hereby granted to use, copy,
# and modify this code for applications developed with Hexaly.
import hexaly.optimizer
import json
import sys

def read_instance(input_file):
    with open(input_file) as f:
        data = json.load(f)

    nb_orders = data["nbOrders"]                # Number of orders
    capacity = data["capacity"]                 # Capacity of the picker
    nb_aisles = data["nbAisles"]                # Number of aisles
    max_nb_batches = data["maxNbBatches"]       # Upper bound on the number of batches
    aisle_traversal = data["aisleTraversal"]    # Length of each aisle
    depot_offset = data["depotOffset"]          # Distance from the depot to the first aisle
    gap = data["gap"]            # Distance between the center lines and two adjacent aisles

    nb_items = [0] * nb_orders                                  # Number of items in each order
    visits_aisle = [[0] * nb_orders for _ in range(nb_aisles)]  # Aisles visited by each order
    orders = data["orders"]
    for i in range(nb_orders):
        nb_items[i] = orders[i]["nbItems"]
        for a in orders[i]["aislesToVisit"]:
            visits_aisle[a][i] = 1

    return nb_orders, capacity, nb_aisles, max_nb_batches, aisle_traversal, gap, \
            depot_offset, nb_items, visits_aisle

# Create and solve the model
def main(input_file, output_file, time_limit):
    # Read instance data
    nb_orders, capacity, nb_aisles, max_nb_batches, aisle_traversal, gap, \
            depot_offset, nb_items, visits_aisle = read_instance(input_file)

    with hexaly.optimizer.HexalyOptimizer() as optimizer:
        # Declare the optimization model
        model = optimizer.model

        # Set decision: batch[k] contains orders assigned to batch k
        batch = [model.set(nb_orders) for _ in range(max_nb_batches)]

        # Partition constraint: each order is assigned to exactly one batch
        model.constraint(model.partition(batch))

        # Initialize batch properties
        batch_count = [None] * max_nb_batches
        distance = [None] * max_nb_batches
        visited = [[None] * nb_aisles for _ in range(max_nb_batches)]

        # Create arrays for aisle visits
        visits_aisle_array = [model.array(visits_aisle[a]) for a in range(nb_aisles)]

        # Create lambda function for nbItems (reused across batches)
        nb_items_array = model.array(nb_items)
        nb_items_lambda = model.lambda_function(lambda i: nb_items_array[i])

        for k in range(max_nb_batches):
            # Capacity constraint: total number of items of orders assigned to batch k is limited
            batch_items = model.sum(batch[k], nb_items_lambda)
            model.constraint(batch_items <= capacity)

            # Expressions for objective function
            # Batch size
            batch_count[k] = model.count(batch[k])
            # Check which aisles are visited by current batch k
            for a in range(nb_aisles):
                arr = visits_aisle_array[a]
                visited[k][a] = model.sum(batch[k], model.lambda_function(lambda i: arr[i])) >= 1

            # Number of visited aisles
            nb_visited = model.sum(visited[k])
            # Farthest visited aisle
            max_visited = model.max(visited[k][a] * a for a in range(nb_aisles))

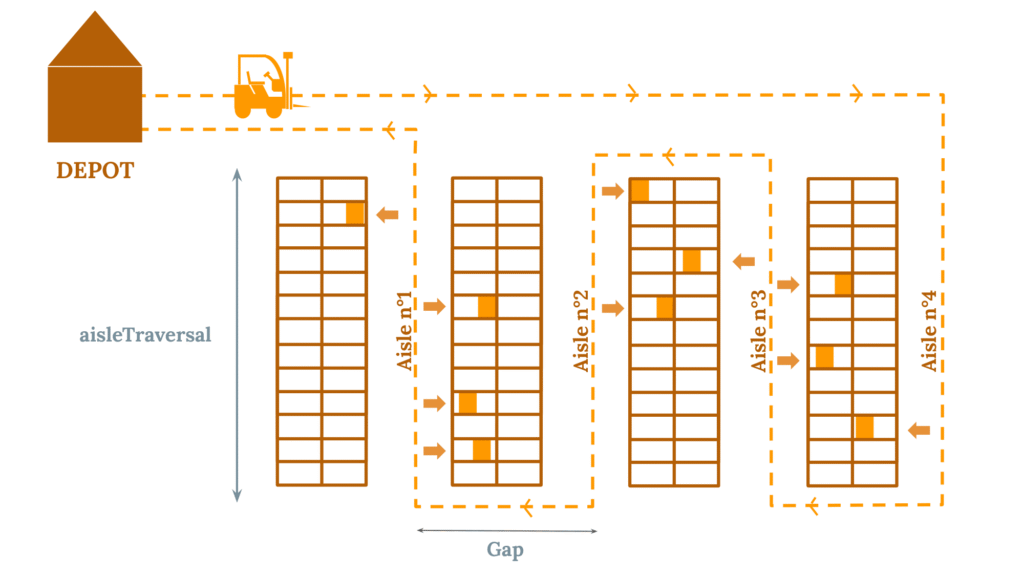

            # S-shape traversal distance (full traversal of every visited aisle)
            distance[k] = (batch_count[k] > 0) * (
                    2 * depot_offset
                    + 2 * gap * max_visited
                    + (nb_visited + nb_visited % 2) * aisle_traversal
            )

        # Minimize total distance
        total_distance = model.sum(distance)

        model.minimize(total_distance)
        model.close()

        # Parameterize the solver
        optimizer.param.time_limit = time_limit
        optimizer.solve()

        # Write the solution in a JSON file
        #   - Objective function
        #   - Content of each batch
        #       | Computed orders
        #       | Travelled Distance
        #       | Visited Aisles
        feasible_list = ["HxSolutionStatus.FEASIBLE", "HxSolutionStatus.OPTIMAL"]
        if (str(optimizer.solution.status) in feasible_list):
            if output_file is not None:
                sol = {"objective": int(total_distance.value), "batches": []}
                for k in range(max_nb_batches):
                    c = batch_count[k].value
                    if c > 0:
                        sol["batches"].append({
                            "orders": list(batch[k].value),
                            "distance": int(distance[k].value),
                            "visitedAisles": [
                                a for a in range(nb_aisles)
                                if visited[k][a].value == 1
                            ],
                        })
                with open(output_file, "w") as f:
                    json.dump(sol, f, indent = 2)
                    f.write("\n")
                print("Solution written in file ", output_file)
        else:
            print("No feasible solution have been found within the allowed time.")

if __name__ == "__main__":
    if len(sys.argv) < 2:
        print("Usage: python order_batching_problem.py inputFile [outputFile] [timeLimit]")
        sys.exit(1)

    input_file = sys.argv[1]
    output_file = sys.argv[2] if len(sys.argv) >= 3 else None
    time_limit = int(sys.argv[3]) if len(sys.argv) >= 4 else 20
    main(input_file, output_file, time_limit)

// Copyright (c) Hexaly. Permission is hereby granted to use, copy,
// and modify this code for applications developed with Hexaly.
#include "optimizer/hexalyoptimizer.h"
#include "json.hpp"
#include <fstream>
#include <iostream>
#include <vector>

using namespace hexaly;
using namespace std;
using json = nlohmann::json;

class OrderBatchingProblem {
public:
    // Instance data
    int nbOrders;                       // Number of orders
    int capacity;                       // Capacity of the picker
    int nbAisles;                       // Number of aisles
    int maxNbBatches;                   // Upper bound on the number of batches
    double aisleTraversal;              // Length of each aisle
    double gap;                         // Distance between the center lines and two adjacent aisles
    double depotOffset;                 // Distance from the depot to the first aisle
    vector<int> nbItems;                // Number of items in each order
    vector<vector<int>> visitsAisle;    // Aisles visited by each order

    // Hexaly Optimizer
    HexalyOptimizer optimizer;
    // Decision variables
    vector<HxExpression> batch;

    // Size of each batch
    vector<HxExpression> batchCount;
    // Aisles visited by each batch
    vector<vector<HxExpression>> visited;
    // Distance travelled by each batch
    vector<HxExpression> distance;

    // Objective function : total travelled distance
    HxExpression totalDistance;

    // Read instance data
    void readInstance(const string& fileName) {
        std::ifstream infile(fileName);
        if (!infile.is_open()) {
            throw std::runtime_error("Cannot open file: " + fileName);
        }
        json data = json::parse(infile);
        infile.close();

        nbOrders = data["nbOrders"];
        capacity = data["capacity"];
        nbAisles = data["nbAisles"];
        maxNbBatches = data["maxNbBatches"];
        aisleTraversal = data["aisleTraversal"];
        gap = data["gap"];
        depotOffset = data["depotOffset"];

        nbItems.resize(nbOrders);
        visitsAisle.resize(nbAisles, vector<int>(nbOrders, 0));

        for (int i = 0; i < nbOrders; ++i) {
            nbItems[i] = data["orders"][i]["nbItems"];
            for (int a : data["orders"][i]["aislesToVisit"]) {
                visitsAisle[a][i] = 1;
            }
        }
    }

    // Create and solve the model
    void solve(int timeLimit) {
        // Declare the optimization model
        HxModel model = optimizer.getModel();

        // Set decision: batch[k] contains orders assigned to batch k
        batch.resize(maxNbBatches);
        for (int k = 0; k < maxNbBatches; ++k) {
            batch[k] = model.setVar(nbOrders);
        }
        // Partition constraint: each order is assigned to exactly one batch
        model.constraint(model.partition(batch.begin(), batch.end()));

        // Initialize batch properties
        batchCount.resize(maxNbBatches);
        distance.resize(maxNbBatches);
        visited.resize(maxNbBatches);

        // Create arrays for aisle visits
        vector<HxExpression> visitsAisleArray(nbAisles);
        for (int a = 0; a < nbAisles; ++a) {
            visitsAisleArray[a] = model.array(visitsAisle[a].begin(), visitsAisle[a].end());
        }
        // Create lambda function for nbItems (reused across batches)
        HxExpression nbItemsArray = model.array(nbItems.begin(), nbItems.end());
        HxExpression nbItemsLambda = model.createLambdaFunction(
                [&](HxExpression i) { return model.at(nbItemsArray, i); });

        for (int k = 0; k < maxNbBatches; ++k) {
            // Capacity constraint: total number of items of orders assigned to batch k is limited
            HxExpression batchItems = model.sum(batch[k], nbItemsLambda);
            model.constraint(batchItems <= capacity);

            // Expressions for objective function
            // Batch size
            batchCount[k] = model.count(batch[k]);
            // Check which aisles are visited by current batch k
            visited[k].resize(nbAisles);
            for (int a = 0; a < nbAisles; ++a) {
                HxExpression visitedLambda = model.createLambdaFunction(
                        [&](HxExpression i) { return model.at(visitsAisleArray[a], i); });
                visited[k][a] = model.sum(batch[k], visitedLambda) >= 1;
            }

            // Number of visited aisles
            HxExpression nbVisited = model.sum();
            for (int a = 0; a < nbAisles; ++a) {
                nbVisited.addOperand(visited[k][a]);
            }
            // Farthest visited aisle
            HxExpression maxVisited = model.max();
            for (int a = 0; a < nbAisles; ++a) {
                maxVisited.addOperand(visited[k][a] * a);
            }
            // S-shape traversal distance (full traversal of every visited aisle)
            distance[k] = (batchCount[k] > 0) * (
                    2 * depotOffset
                    + 2 * gap * maxVisited
                    + (nbVisited + nbVisited % 2) * aisleTraversal);
        }

        // Minimize total distance
        totalDistance = model.sum();
        for (int k = 0; k < maxNbBatches; ++k) {
            totalDistance.addOperand(distance[k]);
        }
        model.minimize(totalDistance);
        model.close();

        // Parameterize the solver
        optimizer.getParam().setTimeLimit(timeLimit);
        optimizer.solve();
    }

    // Write the solution in a JSON file
    //   - Objective function
    //   - Content of each batch
    //       | Computed orders
    //       | Travelled Distance
    //       | Visited Aisles
    void writeSolution(const string& fileName) {
        if (optimizer.getSolution().getStatus() == 2
                || optimizer.getSolution().getStatus() == 3) {
            json sol;
            sol["objective"] = (long long) totalDistance.getDoubleValue();
            sol["batches"] = json::array();
            for (int k = 0; k < maxNbBatches; ++k) {
                int c = (int) batchCount[k].getValue();
                if (c > 0) {
                    json b;
                    HxCollection batchValue = batch[k].getCollectionValue();
                    b["orders"] = json::array();
                    for (int j = 0; j < c; ++j)
                        b["orders"].push_back(batchValue[j]);
                    b["distance"] = (long long) distance[k].getDoubleValue();
                    b["visitedAisles"] = json::array();
                    for (int a = 0; a < nbAisles; ++a)
                        if (visited[k][a].getValue() == 1)
                            b["visitedAisles"].push_back(a);
                    sol["batches"].push_back(b);
                }
            }
            ofstream outfile(fileName);
            outfile << sol.dump(2) << endl;
            printf("Solution written in file %s\n\n", fileName.c_str());
        } else {
            printf("No feasible solution have been found within the allowed time.\n");
        }
    }
};

int main(int argc, char** argv) {
    if (argc < 2) {
        cerr << "Usage: order_batching_problem inputFile [outputFile] [timeLimit]" << endl;
        return 1;
    }
    const char* instanceFile = argv[1];
    const char* solFile = argc > 2 ? argv[2] : NULL;
    const char* strTimeLimit = argc > 3 ? argv[3] : "20";

    try {
        OrderBatchingProblem model;
        model.readInstance(instanceFile);
        model.solve(atoi(strTimeLimit));

        if (solFile != NULL) {
            model.writeSolution(solFile);
        }

        return 0;
    } catch (const exception& e) {
        cerr << "An error occurred: " << e.what() << endl;
        return 1;
    }
}

// Copyright (c) Hexaly. Permission is hereby granted to use, copy,
// and modify this code for applications developed with Hexaly.
using System;
using System.Collections.Generic;
using System.IO;
using Hexaly.Optimizer;
using Newtonsoft.Json.Linq;

public class OrderBatchingProblem : IDisposable
{
    // Instance data
    int nbOrders;           // Number of orders
    int capacity;           // Capacity of the picker
    int nbAisles;           // Number of aisles
    int maxNbBatches;       // Upper bound on the number of batches
    double aisleTraversal;  // Length of each aisle
    double gap;             // Distance between the center lines and two adjacent aisles
    double depotOffset;     // Distance from the depot to the first aisle
    int[] nbItems;          // Number of items in each order
    int[][] visitsAisle;    // Aisles visited by each order

    // Hexaly Optimizer
    HexalyOptimizer optimizer;
    HxExpression[] batch;           // Decision variables
    HxExpression[] batchCount;      // Size of each batch
    HxExpression[][] visited;       // Aisles visited by each batch
    HxExpression[] distance;        // Distance travelled by each batch

    // Objective function : total travelled distance
    HxExpression totalDistance;

    public OrderBatchingProblem()
    {
        optimizer = new HexalyOptimizer();
    }

    public void Dispose()
    {
        if (optimizer != null) optimizer.Dispose();
    }

    // Read instance data
    void ReadInstance(string fileName)
    {
        JObject data = JObject.Parse(File.ReadAllText(fileName));

        nbOrders = data["nbOrders"].Value<int>();
        capacity = data["capacity"].Value<int>();
        nbAisles = data["nbAisles"].Value<int>();
        maxNbBatches = data["maxNbBatches"].Value<int>();
        aisleTraversal = data["aisleTraversal"].Value<double>();
        gap = data["gap"].Value<double>();
        depotOffset = data["depotOffset"].Value<double>();

        nbItems = new int[nbOrders];
        visitsAisle = new int[nbAisles][];
        for (int a = 0; a < nbAisles; ++a)
        {
            visitsAisle[a] = new int[nbOrders];
        }
        JArray orders = (JArray)data["orders"];
        for (int i = 0; i < nbOrders; ++i)
        {
            nbItems[i] = orders[i]["nbItems"].Value<int>();
            JArray aisles = (JArray)orders[i]["aislesToVisit"];
            foreach (var a in aisles)
            {
                visitsAisle[a.Value<int>()][i] = 1;
            }
        }
    }

    // Create and solve the model
    void Solve(int limit)
    {
        // Declare the optimization model
        HxModel model = optimizer.GetModel();

        // Set decision: batch[k] contains orders assigned to batch k
        batch = new HxExpression[maxNbBatches];
        for (int k = 0; k < maxNbBatches; ++k)
        {
            batch[k] = model.Set(nbOrders);
        }
        // Partition constraint: each order is assigned to exactly one batch
        model.Constraint(model.Partition(batch));

        // Initialize batch properties
        batchCount = new HxExpression[maxNbBatches];
        distance = new HxExpression[maxNbBatches];
        visited = new HxExpression[maxNbBatches][];

        // Create arrays for aisle visits
        HxExpression[] visitsAisleArray = new HxExpression[nbAisles];
        for (int a = 0; a < nbAisles; ++a)
        {
            long[] col = new long[nbOrders];
            for (int i = 0; i < nbOrders; ++i)
            {
                col[i] = visitsAisle[a][i];
            }
            visitsAisleArray[a] = model.Array(col);
        }

        // Create lambda function for nbItems (reused across batches)
        long[] nbItemsLong = new long[nbOrders];
        for (int i = 0; i < nbOrders; ++i)
        {
            nbItemsLong[i] = nbItems[i];
        }
        HxExpression nbItemsArray = model.Array(nbItemsLong);
        HxExpression nbItemsLambda = model.LambdaFunction(i => nbItemsArray[i]);

        for (int k = 0; k < maxNbBatches; ++k)
        {
            // Capacity constraint: total number of items of orders assigned to batch k is limited
            HxExpression batchItems = model.Sum(batch[k], nbItemsLambda);
            model.Constraint(batchItems <= capacity);

            // Expressions for objective function
            // Batch size
            batchCount[k] = model.Count(batch[k]);
            // Check which aisles are visited by current batch k
            visited[k] = new HxExpression[nbAisles];
            for (int a = 0; a < nbAisles; ++a)
            {
                int localA = a;
                HxExpression visitedLambda = model.LambdaFunction(i => visitsAisleArray[localA][i]);
                visited[k][a] = model.Sum(batch[k], visitedLambda) >= 1;
            }

            // Number of visited aisles
            HxExpression nbVisited = model.Sum();
            for (int a = 0; a < nbAisles; ++a)
            {
                nbVisited.AddOperand(visited[k][a]);
            }
            // Farthest visited aisle
            HxExpression maxVisited = model.Max();
            for (int a = 0; a < nbAisles; ++a)
            {
                maxVisited.AddOperand(visited[k][a] * a);
            }
            // S-shape traversal distance (full traversal of every visited aisle)
            distance[k] = (batchCount[k] > 0) * (
                    2 * depotOffset
                    + 2 * gap * maxVisited
                    + (nbVisited + nbVisited % 2) * aisleTraversal);
        }

        // Minimize total distance
        totalDistance = model.Sum();
        for (int k = 0; k < maxNbBatches; ++k)
        {
            totalDistance.AddOperand(distance[k]);
        }
        model.Minimize(totalDistance);
        model.Close();

        // Parametrize the solver
        optimizer.GetParam().SetTimeLimit(limit);
        optimizer.Solve();
    }

    // Write the solution in a JSON file
    //   - Objective function
    //   - Content of each batch
    //       | Computed orders
    //       | Travelled Distance
    //       | Visited Aisles
    void WriteSolution(string fileName)
    {
        if (optimizer.GetSolution().GetStatus() == HxSolutionStatus.Feasible
                || optimizer.GetSolution().GetStatus() == HxSolutionStatus.Optimal)
        {
            var sol = new JObject();
            sol["objective"] = (long)totalDistance.GetDoubleValue();
            var batchesArr = new JArray();
            for (int k = 0; k < maxNbBatches; ++k)
            {
                int c = (int)batchCount[k].GetValue();
                if (c > 0)
                {
                    var b = new JObject();
                    var orders = new JArray();
                    HxCollection batchValue = batch[k].GetCollectionValue();
                    for (int j = 0; j < c; ++j)
                    {
                        orders.Add(batchValue[j]);
                    }
                    b["orders"] = orders;
                    b["distance"] = (long)distance[k].GetDoubleValue();
                    var visitedAisles = new JArray();
                    for (int a = 0; a < nbAisles; ++a)
                    {
                        if (visited[k][a].GetValue() == 1)
                        {
                            visitedAisles.Add(a);
                        }
                    }
                    b["visitedAisles"] = visitedAisles;
                    batchesArr.Add(b);
                }
            }
            sol["batches"] = batchesArr;
            File.WriteAllText(fileName, sol.ToString(Newtonsoft.Json.Formatting.Indented) + "\n");
            Console.WriteLine("Solution written in file " + fileName);
        }
        else
        {
            Console.WriteLine("No feasible solution have been found within the allowed time.");
        }
    }

    public static void Main(string[] args)
    {
        if (args.Length < 1)
        {
            Console.Error.WriteLine("Usage: OrderBatchingProblem inputFile [outputFile] [timeLimit]");
            Environment.Exit(1);
        }
        string instanceFile = args[0];
        string outputFile = args.Length > 1 ? args[1] : null;
        string strTimeLimit = args.Length > 2 ? args[2] : "20";

        using (OrderBatchingProblem model = new OrderBatchingProblem())
        {
            model.ReadInstance(instanceFile);
            model.Solve(int.Parse(strTimeLimit));

            if (outputFile != null)
            {
                model.WriteSolution(outputFile);
            }
        }
    }
}

// Copyright (c) Hexaly. Permission is hereby granted to use, copy,
// and modify this code for applications developed with Hexaly.
import java.util.*;
import java.io.*;
import com.hexaly.optimizer.*;
import com.google.gson.*;
import com.google.gson.stream.*;

public class OrderBatchingProblem {
    // Instance data
    private int nbOrders;           // Number of orders
    private int capacity;           // Capacity of the picker
    private int nbAisles;           // Number of aisles
    private int maxNbBatches;       // Upper bound on the number of batches
    private double aisleTraversal;  // Length of each aisle
    private double gap;             // Distance between the center lines and two adjacent aisles
    private double depotOffset;     // Distance from the depot to the first aisle
    private int[] nbItems;          // Number of items in each order
    private int[][] visitsAisle;    // Aisles visited by each order

    // Hexaly Optimizer
    private final HexalyOptimizer optimizer;
    // Decision variables
    private HxExpression[] batch;

    // Size of each batch
    private HxExpression[] batchCount;
    // Aisles visited by each batch
    private HxExpression[][] visited;
    // Distance travelled by each batch
    private HxExpression[] distance;

    // Objective function : total travelled distance
    private HxExpression totalDistance;

    private OrderBatchingProblem(HexalyOptimizer optimizer) {
        this.optimizer = optimizer;
    }

    // Read instance data
    private void readInstance(String fileName) throws IOException {
        JsonReader reader = new JsonReader(
            new InputStreamReader(new FileInputStream(fileName)));
        JsonObject data = JsonParser.parseReader(reader).getAsJsonObject();

        nbOrders = data.get("nbOrders").getAsInt();
        capacity = data.get("capacity").getAsInt();
        nbAisles = data.get("nbAisles").getAsInt();
        maxNbBatches = data.get("maxNbBatches").getAsInt();
        aisleTraversal = data.get("aisleTraversal").getAsDouble();
        gap = data.get("gap").getAsDouble();
        depotOffset = data.get("depotOffset").getAsDouble();

        nbItems = new int[nbOrders];
        visitsAisle = new int[nbAisles][nbOrders];

        JsonArray orders = (JsonArray) data.get("orders");
        for (int i = 0; i < nbOrders; ++i) {
            JsonObject order = (JsonObject) orders.get(i);
            nbItems[i] = order.get("nbItems").getAsInt();
            JsonArray aisles = (JsonArray) order.get("aislesToVisit");
            for (int j = 0; j < aisles.size(); ++j) {
                int a = aisles.get(j).getAsInt();
                visitsAisle[a][i] = 1;
            }
        }
    }

    // Create and solve the model
    private void solve(int limit) {
        // Declare the optimization model
        HxModel model = optimizer.getModel();

        // Set decision: batch[k] contains orders assigned to batch k
        batch = new HxExpression[maxNbBatches];
        for (int k = 0; k < maxNbBatches; ++k) {
            batch[k] = model.setVar(nbOrders);
        }
        // Partition constraint: each order is assigned to exactly one batch
        model.constraint(model.partition(batch));

        // Initialize batch properties
        batchCount = new HxExpression[maxNbBatches];
        distance = new HxExpression[maxNbBatches];
        visited = new HxExpression[maxNbBatches][];

        // Create arrays for aisle visits
        HxExpression[] visitsAisleArray = new HxExpression[nbAisles];
        for (int a = 0; a < nbAisles; ++a) {
            long[] col = new long[nbOrders];
            for (int i = 0; i < nbOrders; ++i) {
                col[i] = visitsAisle[a][i];
            }
            visitsAisleArray[a] = model.array(col);
        }

        // Create lambda function for nbItems (reused across batches)
        long[] nbItemsLong = new long[nbOrders];
        for (int i = 0; i < nbOrders; ++i) {
            nbItemsLong[i] = nbItems[i];
        }
        HxExpression nbItemsArray = model.array(nbItemsLong);
        HxExpression nbItemsLambda = model.lambdaFunction(
                i -> model.at(nbItemsArray, i));

        for (int k = 0; k < maxNbBatches; ++k) {
            // Capacity constraint: total number of items of orders assigned to batch k is limited
            HxExpression batchItems = model.sum(batch[k], nbItemsLambda);
            model.constraint(model.leq(batchItems, capacity));

            // Expressions for objective function
            // Batch size
            batchCount[k] = model.count(batch[k]);
            // Check which aisles are visited by current batch k
            visited[k] = new HxExpression[nbAisles];
            for (int a = 0; a < nbAisles; ++a) {
                final int localA = a;
                HxExpression visitedLambda = model.lambdaFunction(
                        i -> model.at(visitsAisleArray[localA], i));
                visited[k][a] = model.geq(model.sum(batch[k], visitedLambda), 1);
            }

            // Number of visited aisles
            HxExpression nbVisited = model.sum();
            for (int a = 0; a < nbAisles; ++a) {
                nbVisited.addOperand(visited[k][a]);
            }
            // Farthest visited aisle
            HxExpression maxVisited = model.max();
            for (int a = 0; a < nbAisles; ++a) {
                maxVisited.addOperand(model.prod(visited[k][a], a));
            }
            // S-shape traversal distance (full traversal of every visited aisle)
            distance[k] = model.prod(
                    model.gt(batchCount[k], 0),
                    model.sum(
                            model.sum(2 * depotOffset, model.prod(2 * gap, maxVisited)),
                            model.prod(
                                    model.sum(nbVisited, model.mod(nbVisited, 2)),
                                    aisleTraversal)));
        }

        // Minimize total distance
        totalDistance = model.sum();
        for (int k = 0; k < maxNbBatches; ++k) {
            totalDistance.addOperand(distance[k]);
        }
        model.minimize(totalDistance);
        model.close();

        // Parameterize the solver
        optimizer.getParam().setTimeLimit(limit);
        optimizer.solve();
    }

    // Write the solution in a JSON file
    //   - Objective function
    //   - Content of each batch
    //       | Computed orders
    //       | Travelled Distance
    //       | Visited Aisles
    private void writeSolution(String fileName) throws IOException {
        JsonObject sol = new JsonObject();
        sol.addProperty("objective", (long) totalDistance.getDoubleValue());
        JsonArray batchesArr = new JsonArray();
        for (int k = 0; k < maxNbBatches; ++k) {
            int c = (int) batchCount[k].getValue();
            if (c > 0) {
                JsonObject b = new JsonObject();
                JsonArray orders = new JsonArray();
                HxCollection batchValue = batch[k].getCollectionValue();
                for (int j = 0; j < c; ++j) {
                    orders.add(batchValue.get(j));
                }
                b.add("orders", orders);
                b.addProperty("distance", (long) distance[k].getDoubleValue());
                JsonArray visitedAisles = new JsonArray();
                for (int a = 0; a < nbAisles; ++a) {
                    if (visited[k][a].getValue() == 1) {
                        visitedAisles.add(a);
                    }
                }
                b.add("visitedAisles", visitedAisles);
                batchesArr.add(b);
            }
        }
        sol.add("batches", batchesArr);
        try (PrintWriter output = new PrintWriter(fileName)) {
            Gson gson = new GsonBuilder().setPrettyPrinting().create();
            output.println(gson.toJson(sol));
        }
    }

    public static void main(String[] args) {
        if (args.length < 1) {
            System.err.println("Usage: OrderBatchingProblem inputFile [outputFile] [timeLimit]");
            System.exit(1);
        }
        String instanceFile = args[0];
        String outputFile = args.length > 1 ? args[1] : null;
        String strTimeLimit = args.length > 2 ? args[2] : "20";

        try (HexalyOptimizer optimizer = new HexalyOptimizer()) {
            OrderBatchingProblem model = new OrderBatchingProblem(optimizer);
            model.readInstance(instanceFile);
            model.solve(Integer.parseInt(strTimeLimit));
            if (optimizer.getSolution().getStatus() == HxSolutionStatus.Feasible
                    || optimizer.getSolution().getStatus() == HxSolutionStatus.Optimal) {
                if (outputFile != null) {
                    model.writeSolution(outputFile);
                }
            } else {
                System.err.println("No feasible solution have been found within the allowed time.");
            }
        } catch (Exception ex) {
            System.err.println(ex);
            ex.printStackTrace();
            System.exit(1);
        }
    }
}
